If you work in pharmaceutical manufacturing, biotechnology, or any regulated life science environment, the term Ultra Capsule Filters comes up often and for good reason. These enclosed filtration devices have become a standard tool for maintaining sterile fluid handling in critical bioprocessing workflows. But there is still a lot of confusion about how they actually work, what separates one design from another, and when to choose a specific membrane type. This article breaks it all down in plain terms.
What are Ultra Capsule Filters and why do they matter?

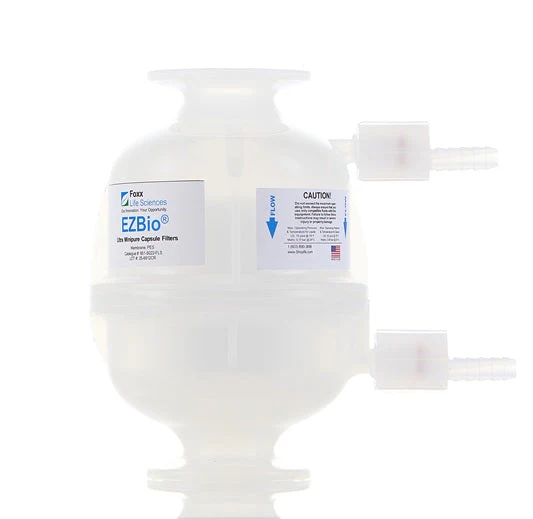

Ultra Capsule Filters are pre-assembled, self-contained filtration units that house a pleated membrane inside a sealed polypropylene housing. Unlike traditional cartridge filters that require a separate stainless-steel housing, capsule filters are ready to use out of the box. This makes them especially valuable in single-use filtration setups where eliminating cleaning and validation steps is a priority. They are designed to prevent microorganisms and particulate matter from entering sterile process fluids which is exactly what you need during media preparation, buffer filtration, and sterile filtration for final product manufacturing.
The compact footprint of Ultra Capsule Filters also makes them practical for integration into OEM equipment and automated process skids. Instead of managing a large multi-component filtration train, engineers can plug in a capsule filter at the right point in the fluid path and achieve consistent, validated results without added complexity.
PES vs PTFE membranes: choosing the right filter for your application
One of the most important decisions when selecting a capsule filter for bioprocessing is membrane material. The two most widely used options are Polyethersulfone (PES) and Polytetrafluoroethylene (PTFE), and they behave very differently in real-world applications. For more details on each, visit the EZBio® Ultra Capsule Filters collection.
PES membrane filters are the go-to choice for aqueous-based applications. They offer low protein binding, which is critical when filtering cell culture media, buffers, or biologics where product loss from membrane adsorption is a real concern. PES capsule filters are available with bacterial retention ratings of 0.2 µm and 0.45 µm, meaning they can reliably block even very small organisms like Brevundimonas diminuta a standard test organism used to validate sterility in pharmaceutical filtration. These filters are tested at a concentration of 10⁷ CFU/cm², meeting the rigorous demands of regulatory review for sterile grade filtration.
PTFE capsule filters, on the other hand, are built for demanding conditions. PTFE is a hydrophobic membrane that excels in air and gas filtration, solvent filtration, and any process stream involving aggressive chemicals that would degrade other materials. The PTFE membrane also maintains absolute particle retention and microorganism retention at 0.2 µm, with extremely low extractables a key requirement when working in high-purity fluid environments or pharmaceutical-grade sterilization processes. PTFE capsule filters are also tested for phage retention, providing an LRV greater than 7 as a sterilization guarantee for gas streams.
Double-layer membrane design and what it means for filtration performance
One structural feature that distinguishes high-quality Ultra Capsule Filters from basic alternatives is the use of a double-layer membrane. Two layers of membrane increase the overall surface area available for filtration, which directly improves flow rate and extends the operational life of the filter before differential pressure rises enough to require replacement. For processes with high-volume throughput or viscous fluids, this design can make a meaningful difference in cycle time and overall process economics. High surface area membranes also support more consistent and repeatable filtrate quality across batches which is non-negotiable in validated manufacturing environments.
Connection options and pressure ratings: practical considerations
A capsule filter is only as useful as its ability to integrate into your existing fluid path. That is why inlet and outlet configurations matter. Well-designed capsule filters for bioprocessing are available with multiple connection types including hose barb fittings, female NPT connections, and sanitary tri-clamp connections giving engineers the flexibility to match the filter to tubing assemblies, bioreactor setups, and process skids without needing adapters or workarounds. Operating pressure is also a key spec. A filter rated to 5.5 bar (80 psi) handles a broad range of industrial and pharmaceutical process conditions without risking housing failure or membrane integrity issues.
Size range and scalability across process volumes
Ultra Capsule Filters are available in a wide range of sizes typically from 2 inches up to 40 inches which means the same platform works for small-scale research filtration as well as large-volume commercial production runs. This scalability is valuable for biotech operations that need to maintain process equivalence from development to manufacturing without switching to entirely different filtration hardware. Selecting the right filter size comes down to your flow rate requirements, the volume being processed per cycle, and the acceptable pressure drop across your system.
About Foxx Life Sciences: Foxx Life Sciences manufactures the EZBio® Ultra Capsule Filter line under ISO 13485 quality management, using USP Class VI materials in ISO Class 7 cleanrooms. With over 15 years of ISO certification, FDA-registered products, and a comprehensive single-use technology portfolio, they bring a level of compliance and reliability that regulated bioprocessing environments demand. Explore the full range at foxxlifesciences.com.
Frequently Asked Questions
Q1. What is the difference between a 0.2 µm and a 0.45 µm Ultra Capsule Filter?
A 0.2 µm capsule filter provides sterilizing-grade filtration, removing bacteria including Brevundimonas diminuta. A 0.45 µm filter is used for general clarification and prefiltration steps where complete bacterial removal is not required but particulate control still matters.
Q2. Can Ultra Capsule Filters be used for gas and air filtration?
PTFE Ultra Capsule Filters are specifically designed for air and gas filtration. Their hydrophobic membrane repels moisture while blocking particles and microorganisms, making them suitable for bioreactor vent filtration, tank breathing, and other gas-handling applications in pharmaceutical and biotech manufacturing.
Q3. How do I know which connection type to select for my process?
Choose hose barb fittings for flexible tubing connections, female NPT for threaded piping systems, and sanitary tri-clamp connections for aseptic or hygienic process environments. Most bioprocessing setups use sanitary fittings to meet GMP requirements for cleanability and sterility assurance.
Q4. Are Ultra Capsule Filters validated for regulatory compliance?
High-quality Ultra Capsule Filters are manufactured using USP Class VI materials and validated against standard bacterial challenge tests. Suppliers with ISO 13485 certification and FDA-registered manufacturing provide the documentation needed for regulatory submission in pharmaceutical and biopharmaceutical production.
Q5. What size Ultra Capsule Filter do I need for my process volume?
Filter size selection depends on your target flow rate, fluid viscosity, and batch volume. Sizes ranging from 2 inches to 40 inches cover everything from lab-scale filtration through full-scale manufacturing. Consult supplier technical support to match membrane surface area to your process requirements.
Product reference: EZBio® Ultra Capsule Filters – Foxx Life Sciences
