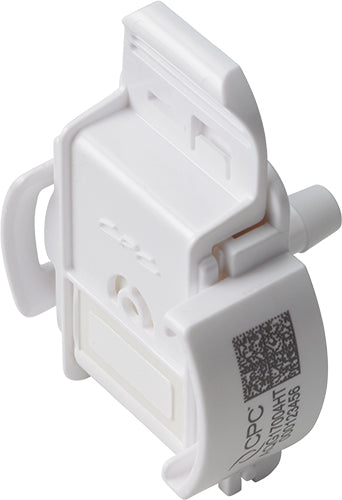

1/4" Hose Barb Genderless AseptiQuik® G Connector - High Temperature

Hose Barb Genderless CPC AseptiQuik® S HT Connector, 1/4"

AseptiQuik® S Connectors Small Format 1/8", 1/4" and 3/8" hose barb and the 1/4" & 3/4" sanitary termination Connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments. The “FLIP-CLICK-PULL” design of AseptiQuik S enables users to quickly transfer small volumes of media easily with less risk of operator error. The connector’s genderless and robust design provides reliable performance without the need for clamps, fixtures, or tube welders. Biopharmaceutical manufacturers can now make 1/8", 1/4" and 3/8" sterile connections with the quality and market availability they expect from the leader in single-use connection technology.

Manufacturer Part Number: AQS17004HT
Pressure: Up to 60 psi, 4.1 bar
Temperature: 39°F to 104°F (4°C  to 40°C)
Typical Flow Rate: Cv 1.74 for ¼” to ¼” and .19 for 1/8” to 1/8”

Materials

Main Components: Polycarbonate (white), USP Class VI, ADCF
Pull Tabs/Covers: Polycarbonate (blue, standard version), USP Class VI, ADCF
Polycarbonate (white, HT version), USP Class VI, ADCF
Seals: Silicone (clear), platinum-cured, USP Class VI, ADCF
Membrane:
Polyethylene (standard version), USP Class VI, ADCF
Hydrophobic polyethersulfone (HT version), USP Class VI

Termination Size

1/8", 1/4" and 3/8" ID hose barb (3.2mm, 6.4mm, and 9.5mm),
3/4” sanitary and MPC insert

Sterilization

Gamma: Up to 50kGy irradiation
Autoclave: Yes
Up to 266°F (130°C) for 30 minutes

Data Sheet

AseptiQuik® S Data Sheet

Effectively Securing Cell And Gene Therapies With Closed Systems White Paper

Videos

Hose Barb Genderless CPC AseptiQuik G Connector Body - High Temperature, 3/8"

Genderless AseptiQuik^® G connectors enable quick and easy sterile connections, even in non-sterile environments. The connectors' robust construction provides enhanced user confidence and reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers benefit from a full range of interchangeable 1/4" to 3/4" flow solutions with the quality and market availability they expect from the leader in single-use connection technology. FLIP-CLICK-PULL is the innovative three-step connection process that reduces the risk of operator error. Connectors have an integrated pull tab that acts as a protective cover reducing part complexity and ensures the simultaneous removal of both membranes. They have the CPC™ click which is an audible confirmation of assembly.

Material

Polycarbonate, USP Class VI, ADCF

Material Finish

Molded White

Pressure Range

Up to 60 psi, 4.1 bar for 30 days; Up to 75 psi, 5.1 bar for 48 hours

Color

White with white pull tab

Mounting Option

Free Floating

Sterilization

Gamma Safe
Autoclave Safe

Temperature Range

34°F - 104°F (1°C - 40°C)

Seal Options

Silicone, platinum-cured, USP Class VI, ADCF

Valve Option

Non-Valved

Data Sheet

Effectively Securing Cell And Gene Therapies With Closed Systems White Paper

Videos

Coming Soon.

Steam Position
Temperature:
39°F to 104°F (4°C to 40°C)
Pressure:
Up to 35 psi, 2.4 bar
Flow Position
Temperature: 39°F to 104°F (4°C to 40°C)
Pressure: Vacuum to 20 psi, 1.4 bar
Sterilization
Gamma: Up to 50 kGy irradiation
Autoclave: Up to 265°F (129°C) for 60 minutes
Steam-In-Place (SIP):
Up to 275°F/135°C (up to ~31psi), 60 minutes

MPX Series couplings add ease of use and security to your most critical fluid handling applications.

Choose from a full line of connectors and configurations, including pressure sealing caps and plugs in sizes to fit 3/8" and 1/2" tubing. MPX couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected reducing tube kinks.
