Every HPLC lab generates spent mobile phase, and that waste has to go somewhere safe. An HPLC solvent waste system is the setup that collects, vents, and stores used solvents from chromatography instruments so fumes and spills never become a lab hazard. Picking the right one affects safety, compliance, and how smoothly your bench runs day to day. This guide breaks down what to look for before you buy.
What Is an HPLC Solvent Waste System

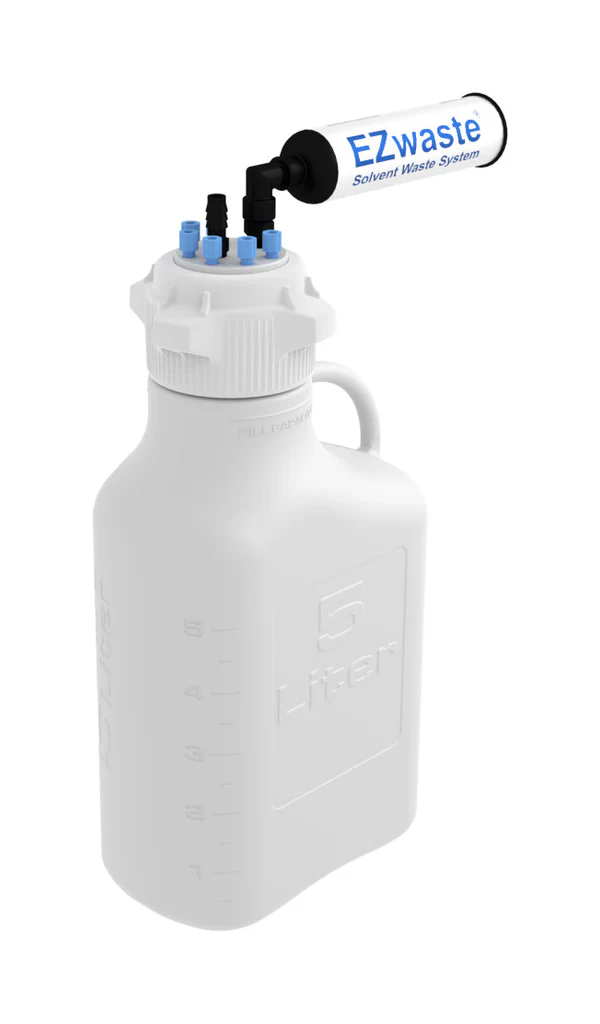

An HPLC solvent waste system is a sealed collection setup, usually a carboy or bottle paired with a multi-port cap, that captures spent mobile phase directly from the instrument's waste line. Instead of open beakers or unsealed containers, the closed design keeps volatile organic compounds (VOCs) contained. Most setups include a vented cap, tubing ports sized for 1/8" or 1/4" OD lines, and a carbon filter that adsorbs solvent vapor before it reaches the room. This matters because acetonitrile, methanol, and other common HPLC solvents are flammable and produce fumes that shouldn't be inhaled repeatedly in a closed lab.
Why Solvent Waste Management Matters in HPLC Labs
Chromatography runs continuously, and waste volume adds up fast. Without a dedicated HPLC waste collection carboy, labs risk vapor buildup, corroded equipment, and OSHA or EPA compliance gaps. A proper system also protects staff from solvent exposure over long shifts. Beyond safety, a well-designed laboratory solvent waste container simplifies disposal logistics, since sealed carboys can be capped, labeled, and moved to hazardous waste pickup without transferring liquid between containers, which cuts down on spill risk.
Key Features to Look For
Carboy material and capacity. HDPE carboys resist most solvents used in HPLC and come in sizes from 5L up to 115L depending on throughput. Higher-volume labs running multiple instruments benefit from 20L or larger carboys to reduce how often waste needs emptying.
Port configuration. Look at how many ports the cap offers and what tubing sizes they accept. Multi-port caps with a mix of 1/8" and 1/4" OD ports let you route waste lines from several instruments into one container, which is useful in shared instrument rooms.
Vent filtration. A activated carbon filter is the single most important safety feature. It adsorbs vapor before it escapes the container, protecting both air quality and the people working nearby.
Chemical compatibility. Confirm the carboy material and cap gaskets are rated for the solvents in your method—acetonitrile and chlorinated solvents can degrade incompatible plastics over time.
Where This Fits in a Broader Lab Safety Setup
An HPLC solvent waste system rarely works alone. It usually connects to secondary containment trays for spill protection, tubing adapters for routing multiple lines, and replacement fittings as ports wear out. Labs standardizing their downstream waste handling often pair carboys with HPLC solvent reservoirs on the supply side, creating a consistent, leak-controlled fluid path from mobile phase bottle to waste container.
Why FOXX Life Sciences Stands Out
FOXX Life Sciences combines HDPE construction, VersaCap multi-port lids, and activated carbon exhaust filters in one ready-to-use HPLC solvent waste system, giving labs a reliable, compliant setup without custom assembly.
Frequently Asked Questions
What size carboy do I need for my HPLC lab?
It depends on run volume and how often you can empty waste. Single-instrument labs often use 5L to 10L carboys, while shared instrument rooms benefit from 20L or larger sizes.
Do I need a carbon filter on my waste carboy?
Yes. A carbon filter adsorbs solvent vapor before it enters the room, reducing inhalation exposure and helping labs stay within air quality and safety guidelines.
Can one carboy handle waste from multiple HPLC instruments?
Yes, if the cap has enough ports. Multi-port VersaCap designs with six to eight ports let several instrument lines feed into a single collection container.
What materials are HPLC waste carboys made from?
Most are HDPE, chosen for broad chemical resistance to common HPLC solvents. Always confirm compatibility with your exact mobile phase before use.
How often should waste carboys be emptied?
This depends on run frequency and local hazardous waste policy, but most labs check fill levels daily and schedule disposal before carboys exceed about 80% capacity.
