A vacuum trap cap assembly is a modular closure system that connects a vacuum source to a collection bottle, protecting pumps and lines from liquid carryover during aspiration, filtration, and cell culture work. Instead of buying an entire vacuum trap system every time a part wears out, labs can simply swap the cap sub-assembly. This guide covers what these assemblies are, how they work, and what to check before buying one.
What Is a Vacuum Trap Cap Assembly?

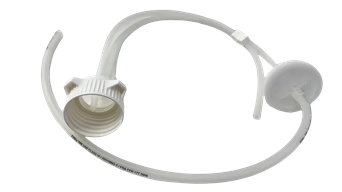

At its core, a vacuum trap cap assembly is the top portion of a vacuum trap system that seals onto a bottle neck and routes tubing between the vacuum source, the collection vessel, and a vent filter. It typically includes a threaded cap, barbed or quick-connect ports, silicone or PTFE tubing, and a hydrophobic vent filter that stops aerosols and liquid from reaching the pump. Because caps are sold separately from bottles, labs gain flexibility: worn parts can be replaced individually instead of discarding the whole unit.
How the Assembly Works in Practice
During aspiration or vacuum filtration, negative pressure pulls waste fluid or filtrate into the collection bottle through the cap's inlet port. The vent filter, mounted on a separate port, lets air pass while blocking liquid and microbial contamination from escaping into the vacuum line. A properly fitted cap keeps this pressure differential stable, which matters during long filtration cycles or biohazardous waste handling. Loose threads or mismatched neck sizes are the most common cause of vacuum loss, so a snug, chemical-resistant seal is essential.
Where These Assemblies Are Used
Vacuum trap cap assemblies show up wherever fluid moves safely under negative pressure. Common applications include cell culture media aspiration in tissue culture hoods, HPLC solvent waste collection, bottle-top filtration in microbiology labs, and general vacuum waste management in pharmaceutical and biotech facilities. Dual-bottle configurations suit labs separating biohazardous and chemical waste, since one vacuum source can serve two bottles through a single manifold cap.
Key Technical Aspects to Consider
Material compatibility is the first thing to check. Polypropylene (PP) caps offer broad chemical compatibility and are autoclavable, making them suitable for a wide range of laboratory applications. Also check neck size compatibility (commonly 53B or 83B thread formats), tubing inner diameter, and vent filter rating. VersaCap®-style adapters, let one cap fit multiple bottle neck diameters, reducing the number of SKUs a lab needs to stock.
Choosing the Right Cap Assembly for Lab
Match the cap to your existing bottle system first, then confirm tubing length and connector style align with your vacuum manifold. Single-bottle setups suit lower-volume labs, while dual-bottle assemblies fit higher-throughput or waste-segregation workflows. If you're unsure which configuration fits your process, providers like Foxxlifesciences offer specification sheets and technical support to match cap assemblies to bottle necks and vacuum requirements.
Why Foxx Life Sciences Stands Out
Foxxlifesciences engineers its cap assemblies with interchangeable VersaCap® adapters, USP Class VI materials, and ISO-certified manufacturing, giving labs a dependable, modular option that fits existing vacuum trap systems without a full system replacement.
Frequently Asked Questions
What is the purpose of a vacuum trap cap assembly?
It seals a collection bottle to a vacuum line, directing waste fluid into the bottle while a vent filter protects the pump from liquid, aerosols, and contamination during lab procedures.
How often should the vent filter be replaced?
Replace the vent filter when it appears wet, discolored, or when vacuum flow weakens.
Is polypropylene safe for chemical waste collection?
Polypropylene resists a wide range of solvents and acids, making it suitable for most chemical waste streams, though highly aggressive reagents may require glass or specialty materials instead.
Do dual-bottle assemblies need two vacuum sources?
No, most dual-bottle cap assemblies connect to a single vacuum source through a shared manifold, allowing simultaneous waste collection into two separate bottles.
