Autofil® Bottle Top Vacuum Filter Assembly 500mL, .2μm PES, 12/case

• Height: 4.18" (106.1 mm)
• Diameter(max): 4.56" (115.9mm)
• Weight: .307lb (.140kg)
• Funnel Volume: 500ml
• Funnel Material: Polystyrene
• Filter Material: PES
• Filter Pore Size: .1μm
• Gamma sterilized 10^"“6

• Height: 4.18" (106.1 mm)
• Diameter(max): 4.56" (115.9mm)
• Weight: .307lb (.140kg)
• Funnel Volume: 500ml
• Funnel Material: Polystyrene
• Filter Material: PES
• Filter Pore Size: .2μm
• Gamma sterilized 10^"“6

• Height: 4.18" (106.1 mm)
• Diameter(max): 4.56" (115.9mm)
• Weight: .307lb (.140kg)
• Funnel Volume: 500ml
• Funnel Material: Polystyrene
• Filter Material: PES
• Filter Pore Size: .45μm
• Gamma sterilized 10^"“6

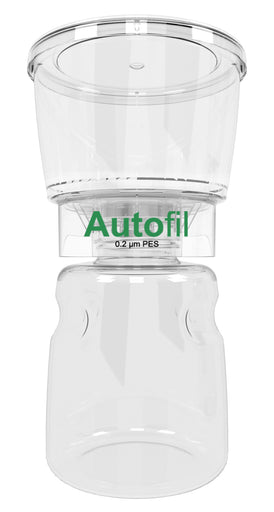

High Flow PES Full Assembly Laboratory Filtration

Foxx Life Sciences Autofil® 500ml .2μm High Flow PES Bottle Top Filter Full Assembly is a complete filtration system. This patented next generation system includes a SECUREgrasp® media bottle attached to the bottle top filter, which features a 0.2μm (sterilization grade) asymmetric PES low protein binding and surfactant-free membrane. Also included is a standard hose barb vacuum connector.

Designed for sterilization or clarification of aqueous laboratory fluids, Foxx Life Sciences Autofil® Vacuum Filtration System is a disposable, sterile, vacuum operated unit used for the preparation of buffers, tissue culture media, microbiological media, and other biological fluids. Utilizing the hardware avoids potential contamination by eliminating any unnecessary fluid transfer to the media bottle post-sterilization, and reduces the risk of spills.

*Must be used with a vacuum source.

FEATURES

• Includes vacuum hose adapter for direct connection to Autofil® unit
• Autofil® design includes an ergonomic bottle shape with molded finger grips
• Autofil® Patented SECUREgrasp® cap provides a convenient gripping surface, while enabling bottle stacking and labeling after filtering
• Conveniently sold presterilized
• Made with Class VI Materials
• Manufactured in a Class 100,000 Clean Room
• Manufactured in an ISO 13485 Facility in North America
• Patented docking hardware sold separately
• Gamma Sterilized 10^"“6 in the USA

Separately Available Hardware

Available separately, for hands-free operation of the filter unit, is our stable, low-profile patented pedestal base or low cost ring-stand cradle. This hardware provides a stationary vacuum hose connection that makes set-up and use quick and efficient while preventing spills and tissue culture hood contamination.

Pedestal and Cradle Ring Shown (sold separately)

SPECIFICATIONS

• Made in: USA
• Manufacturer: Foxx Life Sciences
• Quantity: 12/cs
• SKU/Product Code: 1102-RLS
• UPC/GTIN: 649558219269
• Color: Clear
• Funnel/ Bottle Material: Polystyrene
• Cap Material: Polypropylene
• Filter Material: PES
• Size/Dimensions;
• Bottle Height: 4.42" (112.3 mm)
• Funnel Height: 4.18" (106.1 mm)
• Diameter(max): 4.56" (115.9mm)
• Weight: .875lb (.614kg)
• Funnel Volume: 500ml
• Bottle Volume: 500ml
• Filter Pore Size: .2μm
• Gamma sterilized 10^"“6

DOCUMENTATION

Autofil® Datasheet: (US)

Autofil® Datasheet: (A4)

Click here for a full list of our product datasheets!

VIDEOS

Check out all of our videos on our YouTube Channel!

• Bottle Height: 4.42" (112.3 mm)
• Funnel Height: 4.18" (106.1 mm)
• Diameter(max): 4.56" (115.9mm)
• Weight: .875lb (.614kg)
• Funnel Volume: 500ml
• Bottle Volume: 500ml
• Funnel/ Bottle Material: Polystyrene
• Cap Material: Polypropylene
• Filter Material: PES
• Filter Pore Size: .1μm
• Gamma sterilized 10^"“6
