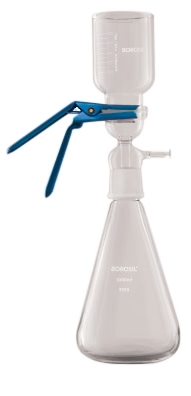

What Is a Glass Filtration Assembly?
A glass filter assembly is a laboratory filtration setup used to separate suspended particles, microorganisms, or other contaminants from liquids through a membrane. A typical system combines a funnel, filter support, membrane, flask, clamp, and vacuum connection. Borosilicate glass construction offers chemical resistance, low extractables, and visibility, making a laboratory glass filtration system useful where sample purity and solvent compatibility matter.
How Does a Glass Filtration Assembly Work?
In a vacuum filtration assembly, liquid is placed into the funnel above the membrane. Vacuum applied to the receiving flask creates a pressure difference that pulls liquid through the membrane while retained material remains on its surface. Filtration performance depends on membrane material, pore size, sample viscosity, solids loading, and vacuum conditions. A high-positioned vacuum connection can help reduce the risk of filtrate entering the vacuum line. Funnel graduations also support consistent measurement during procedures.
Key Components of a Glass Filtration Assembly
The funnel or upper reservoir holds the sample and directs it toward the filter. A glass membrane filter holder or fritted glass filter base supports the membrane and provides a stable filtration surface. The membrane performs the separation and should match the sample chemistry, pore size, and retention requirement. The receiving flask collects filtrate, while a clamp secures the assembly. Common configurations include a 47mm filter assembly for routine laboratory volumes and a 90mm filter assembly for applications requiring greater filtration area or higher loading.
Why Borosilicate Glass Is Used for Filtration
Borosilicate glass is widely used because it provides chemical resistance, thermal stability, and low extractable characteristics. These properties are valuable when filtering aqueous solutions, organic solvents, buffers, and analytical samples where equipment interaction could affect results. Glass also allows visual inspection of the sample and filtrate. For cleaning or sterilization, the complete assembly should be evaluated according to manufacturer instructions and the operating conditions.
Common Uses of Glass Filtration Assemblies
A glass filtration assembly is commonly used for HPLC solvent filtration and prefiltration of mobile phases to remove particulate matter before analysis. It also supports microbiological filtration, bacteria-retentive filter testing, analytical sample preparation, and quality-control procedures. Botanical and cannabis extraction filtration can also benefit from glass construction when solvent compatibility and process visibility are important. Depending on membrane selection, the setup can support particulate removal, clarification, or microorganism retention. The system should be matched to the fluid, membrane, required retention level, and process volume.
Choosing the Right Glass Filtration Assembly
Selection begins with filtration volume and membrane diameter. A 47mm system suits many routine laboratory applications, while a 90mm configuration can provide more membrane area for larger volumes or higher particulate loads. Consider membrane material and pore size next. Hydrophilic membranes are generally suitable for aqueous samples, while hydrophobic membranes may suit compatible organic or specialized applications. Check chemical compatibility for the membrane and wetted component. Flask capacity, funnel volume, clamp design, vacuum connection position, and available vacuum equipment should also be reviewed.
Technical Considerations for Reliable Filtration
Reliable filtration depends on the complete setup, not only the glass hardware. Use a membrane with suitable pore size and chemical compatibility, avoid excessive loading, and maintain a stable vacuum. Inspect glassware for chips, cracks, or damage before use. Clean and sterilize reusable components according to validated laboratory procedures. For critical workflows, control sample handling, filtration time, membrane integrity, and contamination risks to improve consistency.
Why Special: Foxx Life Sciences
Foxx Life Sciences offers glass filtration assemblies built for laboratory workflows, using borosilicate glass, fritted filter supports, multiple membrane diameters, and configurations for vacuum filtration, HPLC solvent prefiltration, sterility testing, and analytical applications.
Conclusion
A glass filtration assembly provides a method for controlled liquid filtration. Its combination of borosilicate glass components, membrane support, receiving flask, clamp, and vacuum connection makes it suitable for laboratory and analytical workflows. Correct membrane selection, system size, and operating conditions are essential for dependable results.
Frequently Asked Questions
What is a glass filtration assembly?
A glass filtration assembly is a reusable laboratory setup that uses a membrane, funnel, filter support, flask, clamp, and vacuum for liquid separation.
What is a glass filtration assembly used for?
It is used for solvent prefiltration, particulate removal, microbiological testing, analytical sample preparation, clarification, and routine extraction filtration applications.
Why use borosilicate glass for filtration?
Borosilicate glass offers chemical resistance, thermal stability, low extractables, and clear visibility, making it suitable for many analytical filtration workflows.
What is the difference between 47 mm and 90 mm filtration assemblies?
A 47mm assembly suits routine filtration, while a 90mm assembly provides greater membrane area for larger volumes or higher particulate loading.
How do I choose a membrane for glass filtration?
Select membrane material and pore size based on the sample, solvent compatibility, required retention, filtration volume, and intended analytical or microbiological application.
